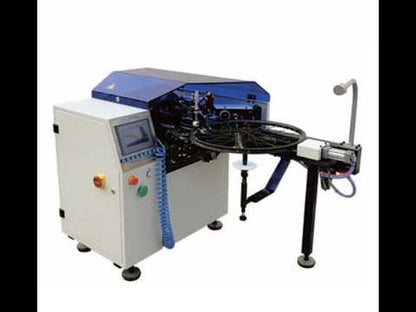

NCH Auto Lacing and Tightening Machine for Bicycle and EBikes
NCH Auto Lacing and Tightening Machine for Bicycle and EBikes
SKU:ONLM251028A1NCH

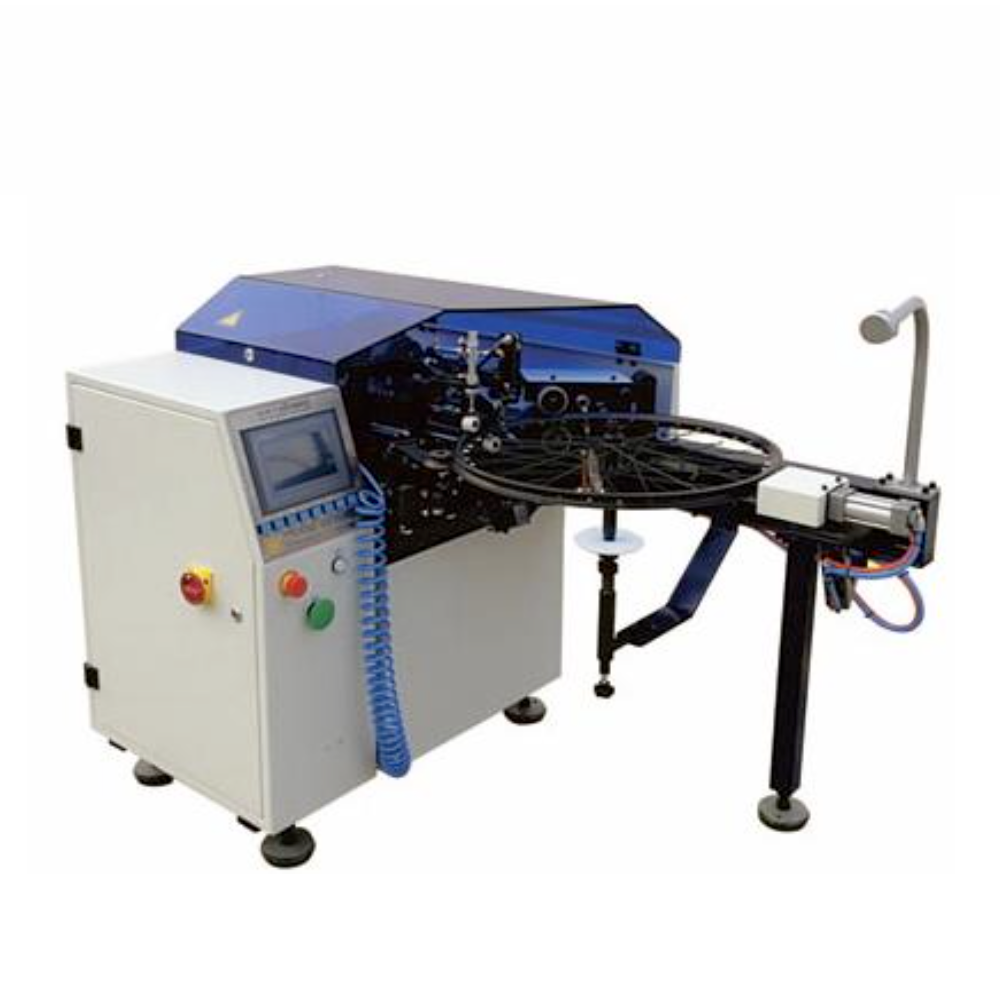

NCH Auto Lacing and Tightening Machine. Support regular Bicycle and EBikes
Model No:CH-40-13
Description:

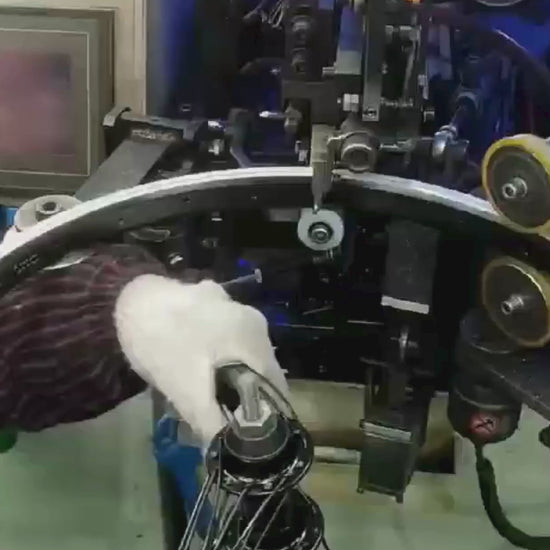

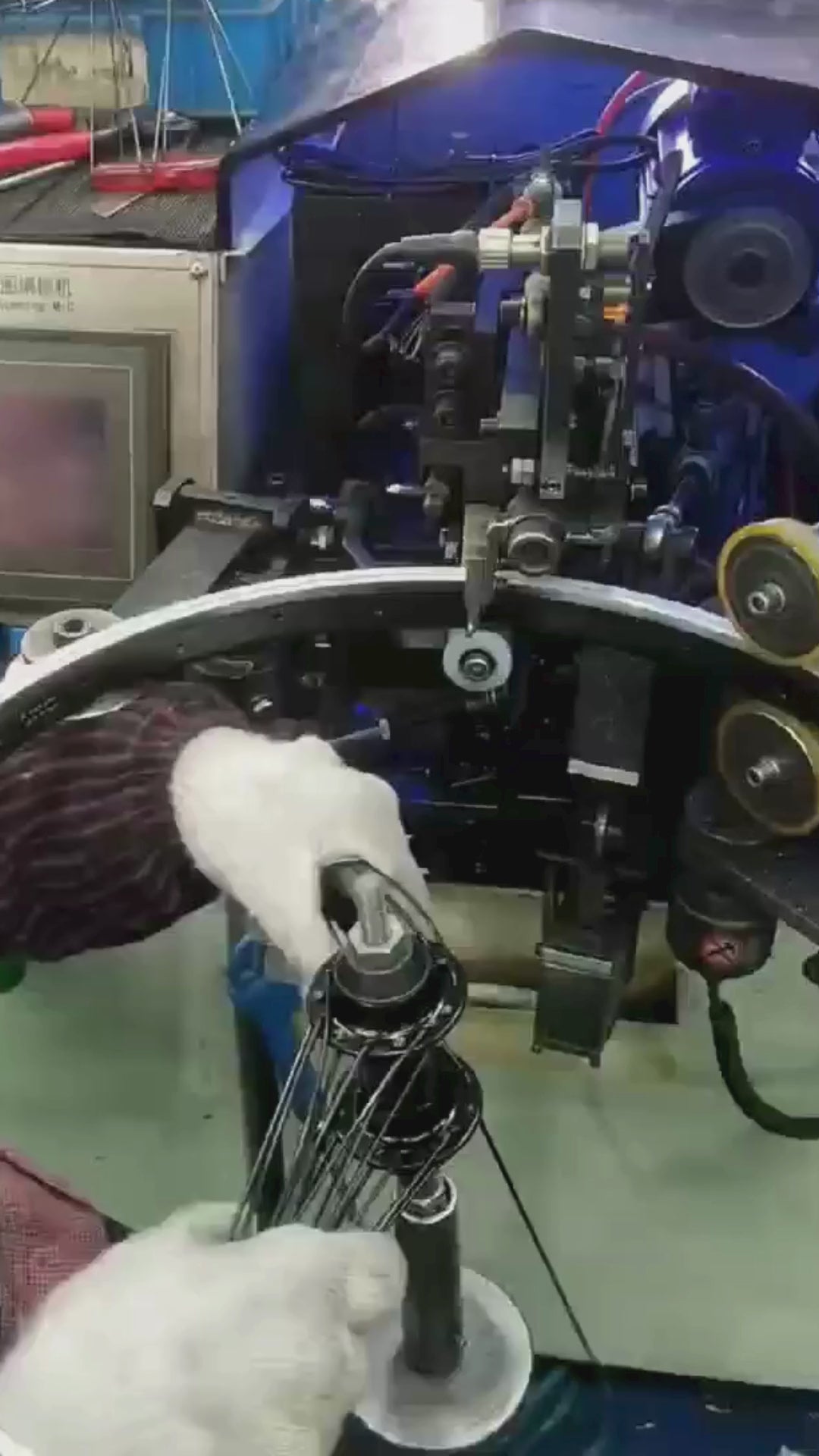

1. Integrated lacing and tightening in a single operation
The NCH Auto Lacing and Tightening Machine (CH-40-13) combines spoke lacing (nipple feeding, driving, and insertion) with simultaneous nipple tightening and tension adjustment. This setup allows the machine to tighten spokes to a target tension during the lacing process, which can reduce the time needed for subsequent truing steps.
2. Support for a range of rim sizes and types
It accommodates rim diameters from 20" to 29" and is suitable for both single-wall and double-wall rims.
3. Drive and control system
The machine uses 5 servo motors and 2 stepping motors to handle precise movements, including automatic correction for variations in nipple hole positions and adjustments for up/down and left/right tension.
Production capacityIt achieves a capacity of approximately 50–70 pieces per hour for 36-spoke wheels (under standard conditions).
Power and utility requirements
- Power supply: 3-phase 380V 50Hz, approximately 1 kW.
- Air pressure: 0.4–0.6 MPa, with air consumption around 25 L/min.
These features position the CH-40-13 as a reliable option for moderate-volume bicycle wheel assembly, particularly where integrated lacing and initial tightening help streamline downstream processes
Interested in this machine? Reach out today for pricing and estimated delivery times
Processing time : Approximately 45 days
Shipping time : Depends location.
USA & Canada & Europe - Approximately 45 to 60 days
|
Function |
Lacing and tightening wheel |
|
Applicable Products |
Single wall and double wall rims |
|
Size of Rims |
20"~29" |
|
Rim width |
Below 40 mm. |
|
Rim height |
Below 35 mm. |
|
Capacity |
50~70 PCS/HR(36 spokes) |
|
Color |
Grey + White |
|
Size |
W1560×L930×H1230mm |
|
Weight |
380 KG |
|
Power |
1 KW |
|
Voltage |
3P 380V 50Hz |
|
Control Mode |
PLC + Touch Screen |
|
Max. system Compressed air Pressure |
0.4~0.6 MPa |
|
Air consumption |
25 L/Min |
