Industrial 10kW Off Grid Solar Power System Complete Set
Industrial 10kW Off Grid Solar Power System Complete Set
SKU:ONBKSO240710A02C9
Industrial 10kW Off Grid Solar Power System Complete Set

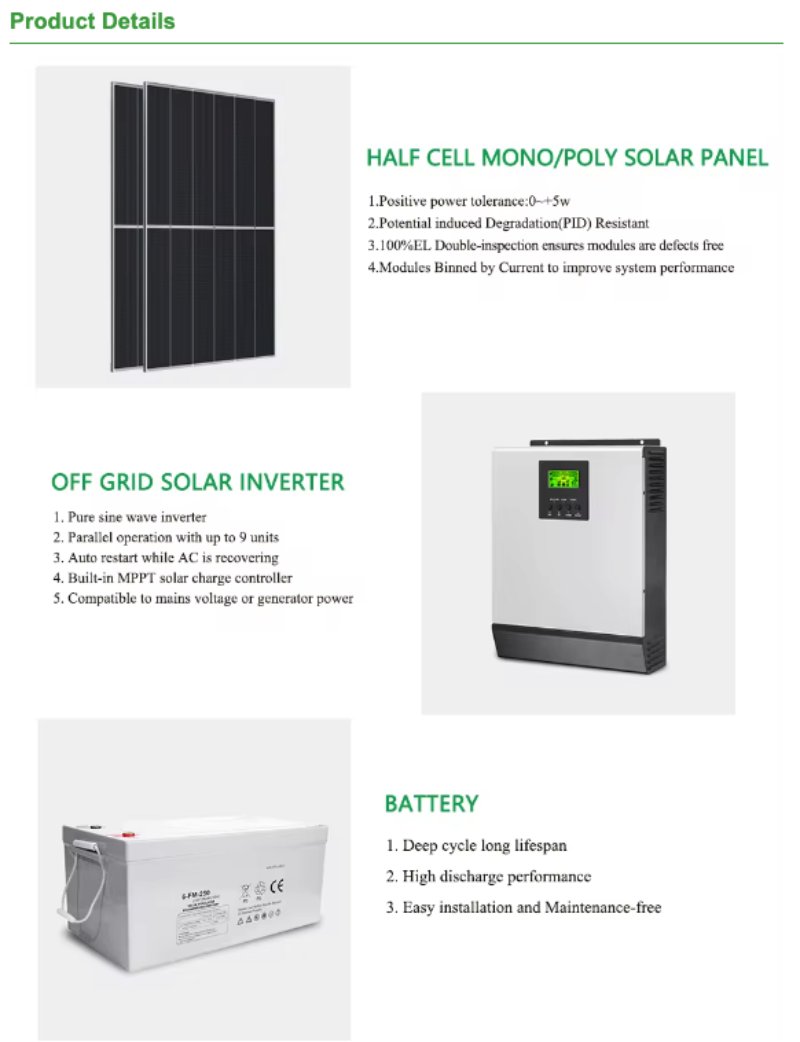

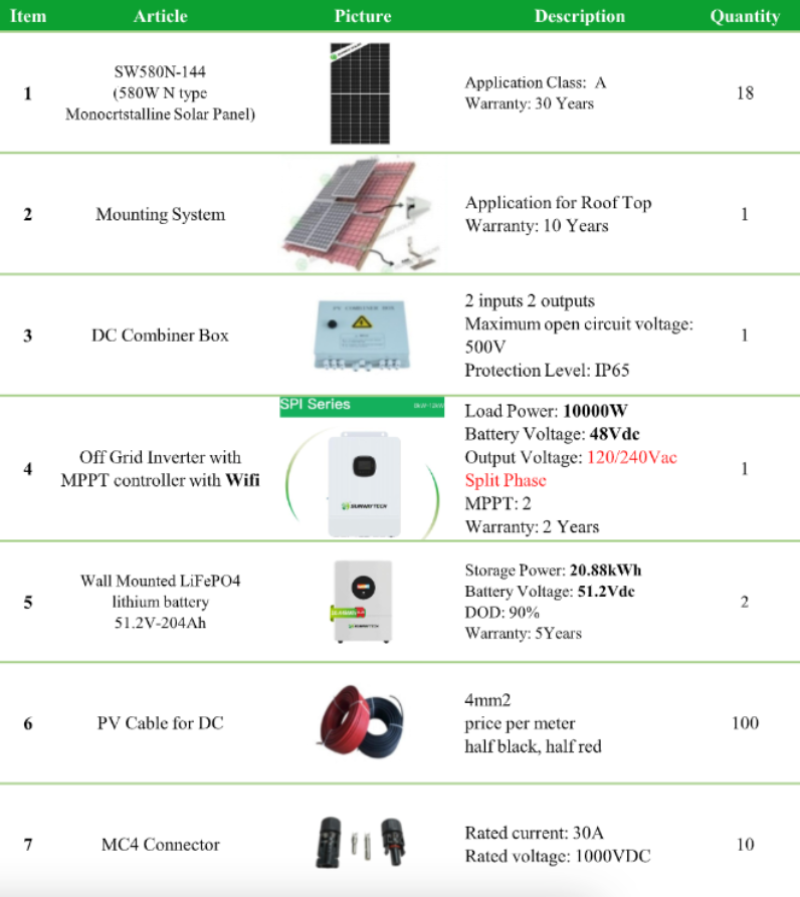

Package includes:
1. 580W N Type Monocrystalline Solar Panel x 18 pcs
- Application Class: A

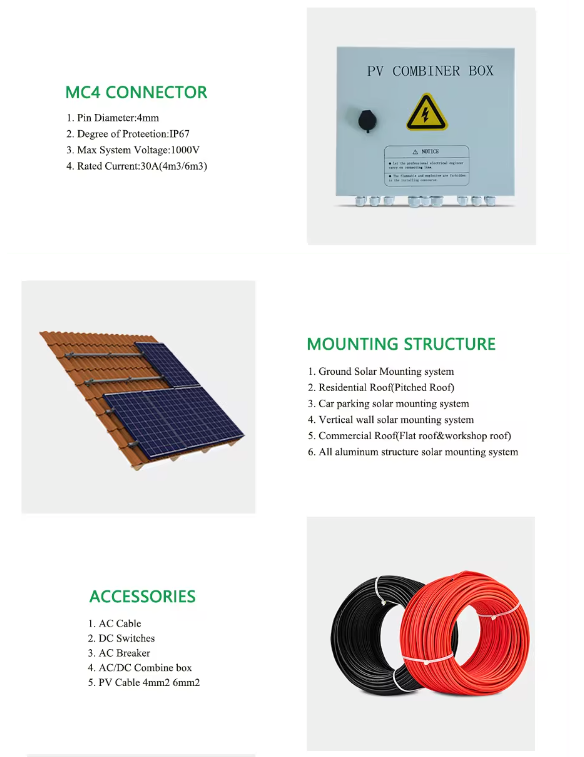

2. Mounting System x 1
- Application for Roof Top
3. DC Combiner Box 2 inputs 2 outputs x 1
- Maximum open circuit voltage: 500V
- Protection Level: IP65
4. Off Grid Inverter with MPPT controller with Wifi x 1
- Load Power: 10000W
- Battery Voltage: 48V dc
- Output Voltage: 120 / 240V ac
- Split Phase
- MPPT: 2
5. Wall Mounted LiePO4 Lithium Battery 51.2V - 204Ah x 2
- Storage Power: 20.88kWh
- Battery Voltage: 512V dc
- DOD: 90%
6. PV Cable For DC 4mm2 x 100
- half black, half red

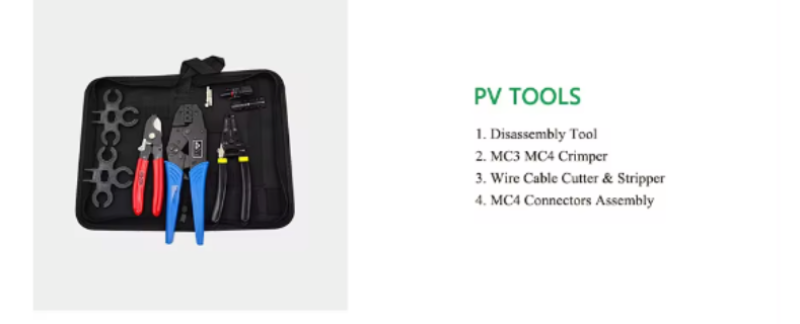

7. MC4 Connector x 10
- Rated current: 30A
- Rated Voltage: 1000V dc
Specification for Panel:
Panel Dimensions: 2278*1134*35mm
Type: Half Cell, Single Glass, N-TYPE
Solar cell: 144 Cells (6*24)
Glass: 3.2mm, Low Iron Tempered Glass
Panel Efficiency: 22.45%
Junction Box: IP68,3 diodes
Frame: Anodized Aluminium Alloy
Weight: 28kg / panel
Quantity: 31 pcs / pallet
Different specifications can be quoted upon request
